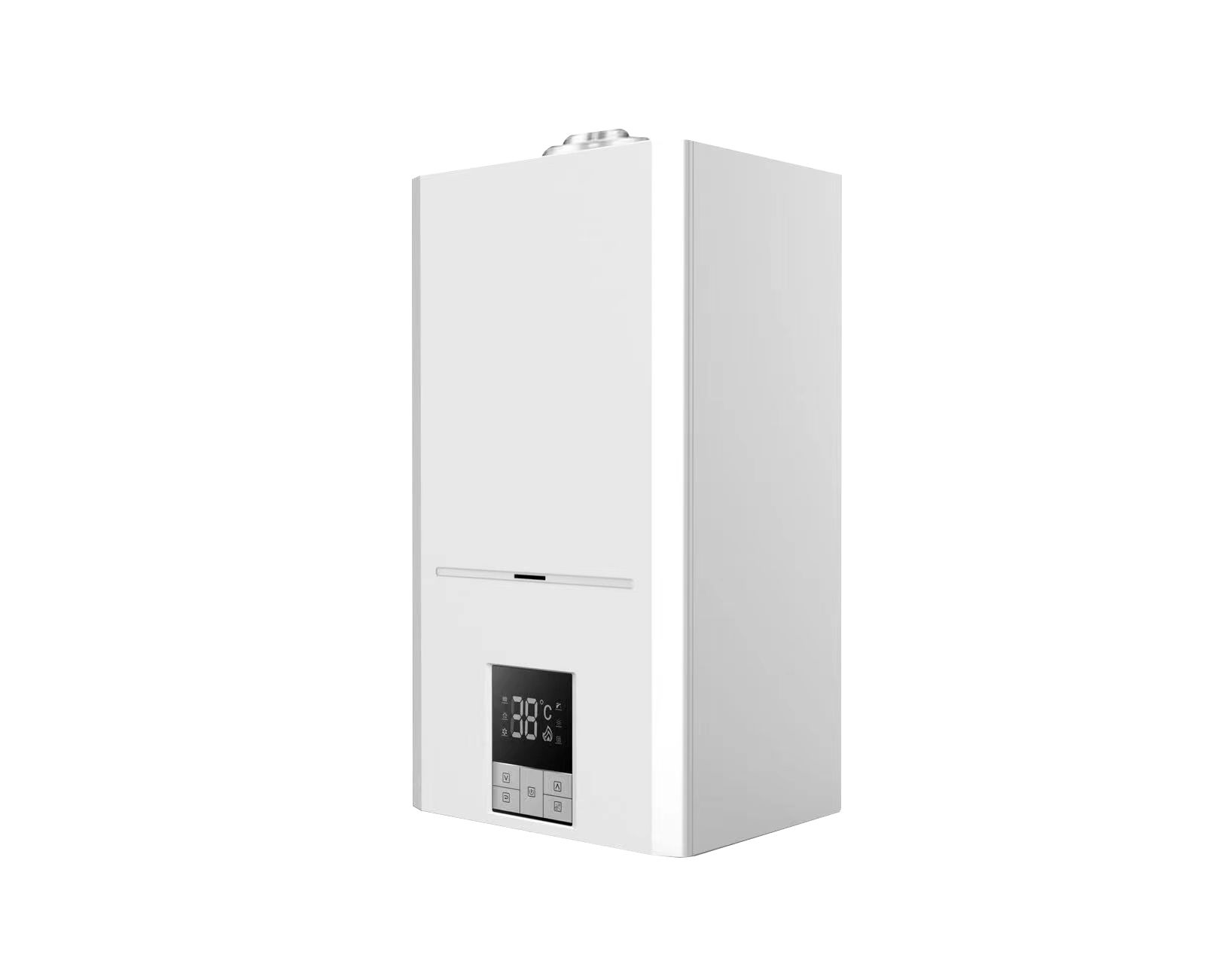

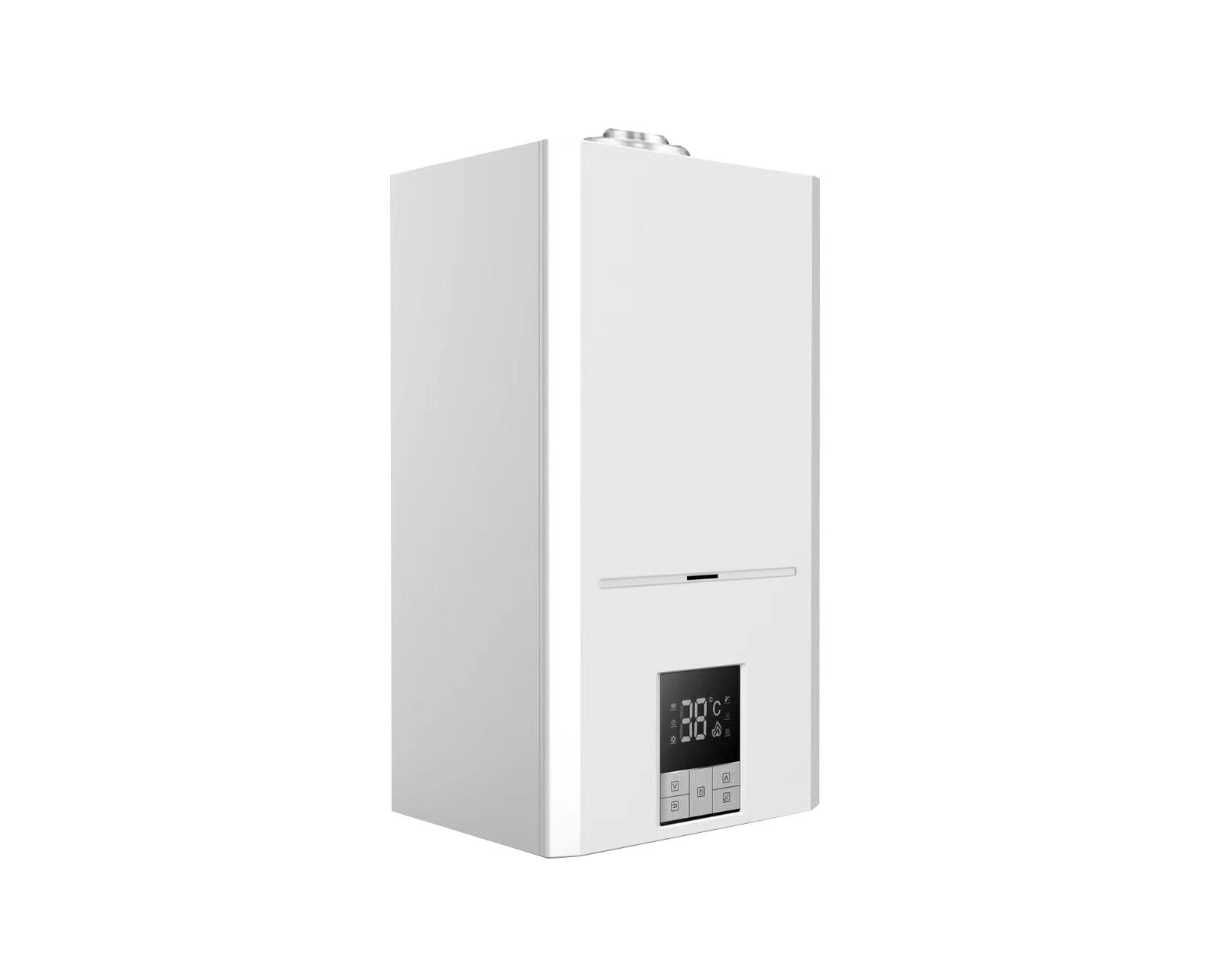

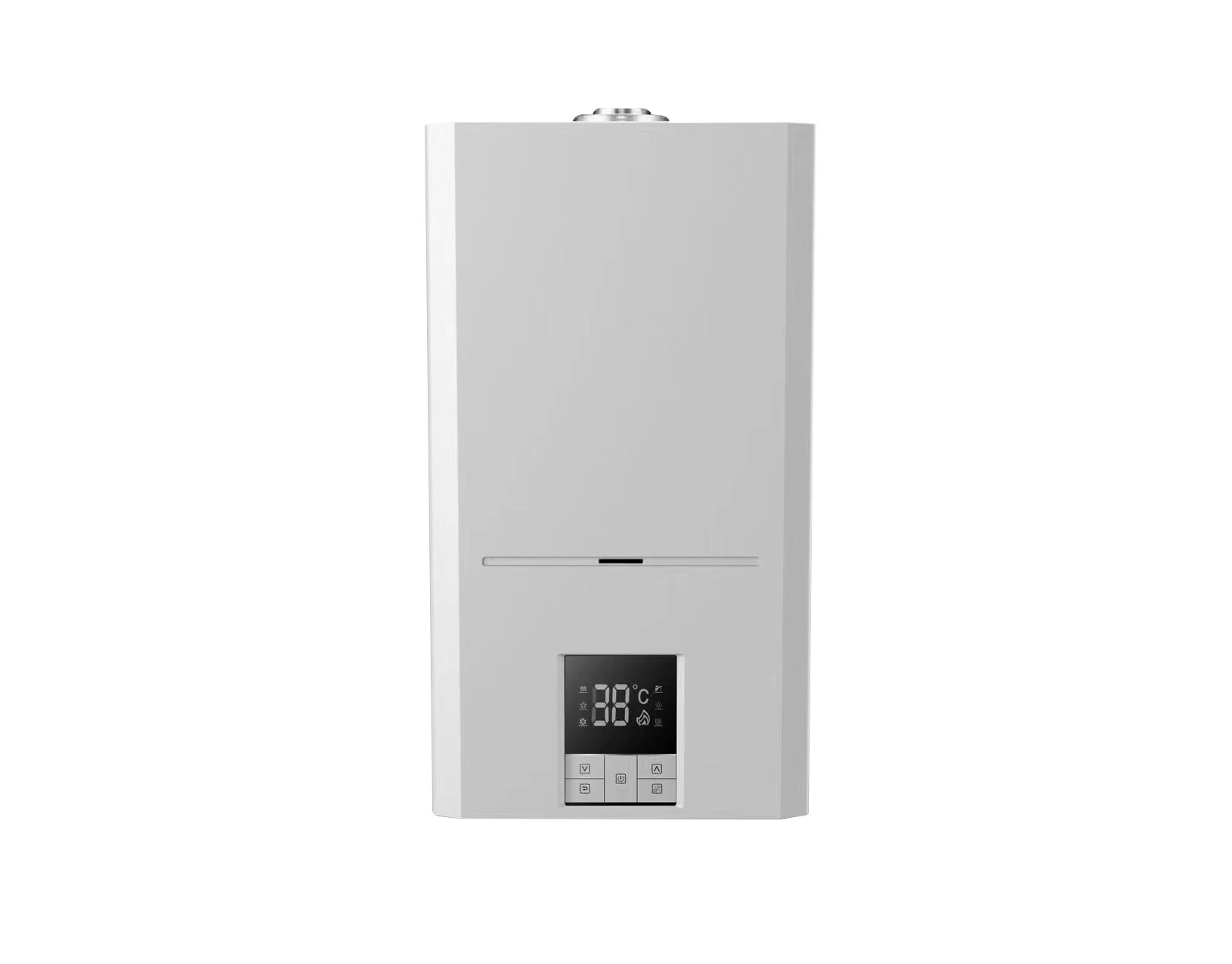

Wall-mounted, turbocharged, gas, double-circuit boiler.

Description

The wall-mounted turbocharged two-circuit gas boiler with an efficiency of 90% provides efficient heating and hot water supply. It works on natural gas (NG) at a nominal pressure of 2000 Pa. The supply voltage is AC220V, 50Hz. Maximum/minimum pressure in the hot water supply system – 8/0.2 bar, in the heating system – 3/0.2 bar. Equipped with Chinese automation for reliable and safe use.

Service (hotline) 0800752555

Specifications

Model	RGB-016	RGB-024	RGB-028	RGB-032	RGB-036	RGB-040	RGB-046	RGB-053
Heating power,(kW)	16	24	28	32	36	40	46	53
Hot Water Capacity At △T=25℃,L/min	8	12	14	16	18	20	23	26,5
Hot Water Capacity At △T=30℃,L/min	6,6	9,8	11,5	13,3	14,5	16,6	18,6	21,9
Reference Heating Area,m2	160	240	280	320	360	400	460	530
Smoke Tube Size,mm	60/100	60/100	60/100	60/100	60/100	60/100	60/100	80/127
Net weight, kg	25,8	27,7	32,1	36,3	37,2	41,9	43,8	49,9
Gross weight, kg	710x420x245	710x420x245	740х410х310	740x470x325	740x470x325	740x510x325	740x510x325	740x580x320
Product Dimension HхWхD,mm	814x480x302	814x480x302	827x477x403	840x540x430	840x540x430	827x577x413	827x577x413	832x657x398
Packing dimension (LxWxH)	28,2	30,3	34,2	39,2	40,1	44,2	46,2	59,1
